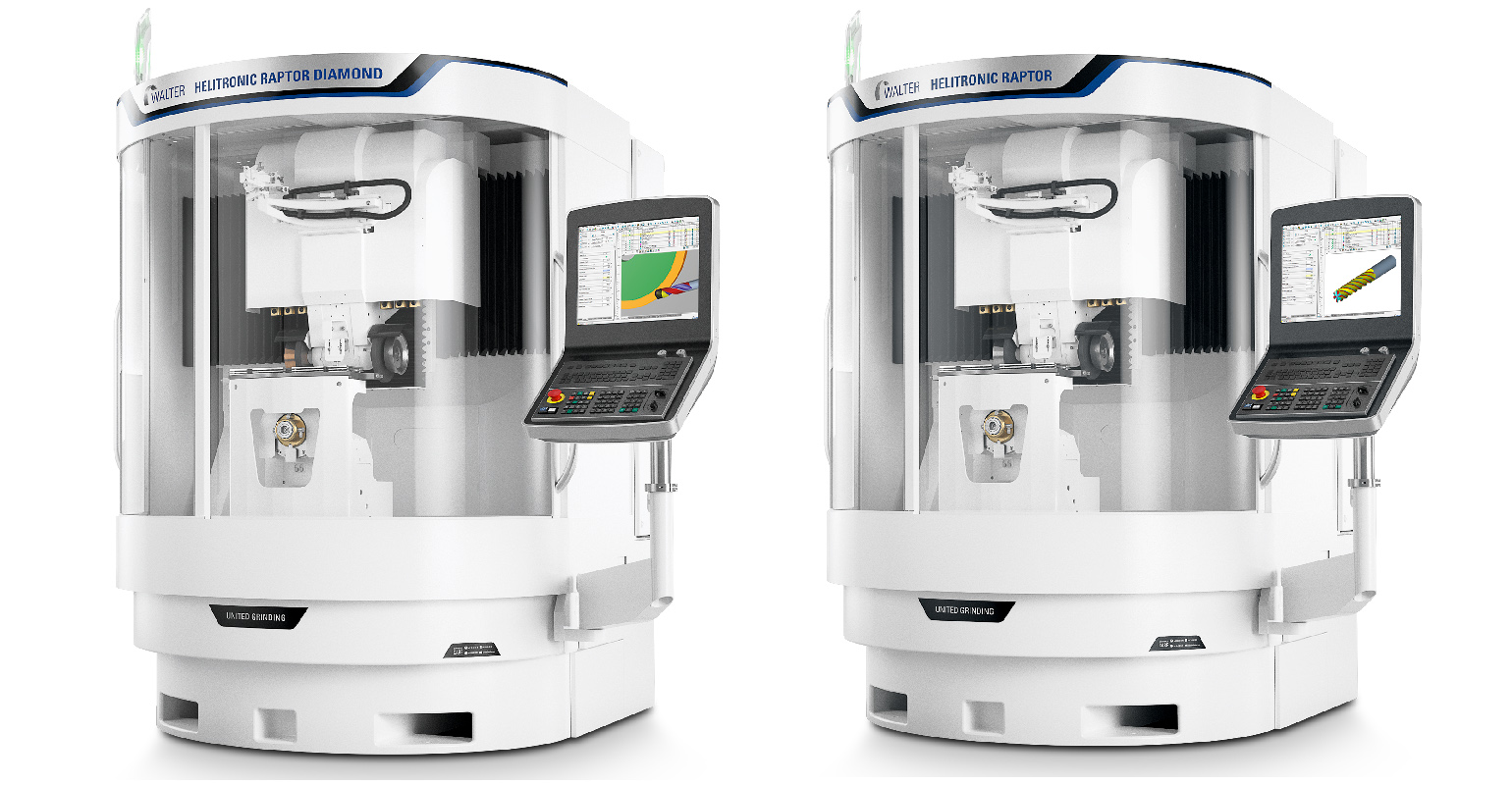

United Grinding Group is offering two new tool-grinding systems and promising to deliver "innovative, flexible, and cost-effective processing". The Walter Helitronic Raptor and Helitronic Raptor Diamond have been developed for the grinding and re-sharpening of rotationally symmetrical tools.
The new Helitronic Raptor offers both automation-ready flexibility and an economical, universal design for all-around tool grinding excellence. The new Walter Helitronic Raptor Diamond extends the developer's "Two-in-One" concept for grinding and eroding machines, for re-sharpening carbide or PCD tools.
Developed particularly for re-sharpening of rotationally symmetrical tools, the Walter Helitronic Raptor is particularly well-suited for shops that do not require features like automatic tool support systems or automatic grinding wheel changers, but still need a high degree of flexibility in the working area for diverse types of tools. The new machine ensures that manufacturers have access to Walter quality with the features they need for part-production and re-sharpening success.
The Helitronic Raptor has a 15.4 hp (11.5 kW) spindle and a work envelope that can accommodate tools up to 12.6 in. (320 mm) in diameter and 11.0 in. (280 mm) long, including end-face operations. For maximum tool-grinding efficiency, from tool design to part production as well as re-sharpening, the machine uses Walter Helitronic Tool Studio.
For the Helitronic Raptor Diamond, Walter eroding technology achieves low cycle times and better performance thanks to Fine Pulse Technology, which according to the developer produces tools with smoother, more perfect exteriors and cutting edges, along with super-fine finishes that match the level of visible shine generally reserved for polished tools. Fine Pulse Technology finely finishes tools made from the most common PCD types, from 10 µm grain size to coarse-grained formulations.
As for the new Helitronic Raptor, the Helitronic Raptor Diamond was developed especially for production and re-sharpening of rotationally symmetrical PCD tools, and particularly for shops that require high flexibility for different tool types.
The Helitronic Raptor Diamond has a 15.4 hp (11.5 kW) spindle and a work envelope that can accommodate tools up to 15.7 in. (400 mm) in diameter and 10.6 in. (270 mm) long, including end-face operations.
As with other Walter Two-in-One EDM and grinding machines, an HSK interface for electrode/wheel grinding is standard. For maximum tool-grinding and eroding efficiency, from tool design to part production as well as re-sharpening, the machine uses Walter Helitronic Tool Studio.
In addition to low-vibration gray cast iron frames and gantry-type constructions, both the Helitronic Raptor and Helitronic Raptor Diamond are designed to accommodate a range of options, including top loaders with up to 500-tool capacities integrated in the working area. Other options include glass scales, A-axis torque drive, a grinding wheel measuring probe, and a manual support steady rest.
